Features
◼ 650V, 75A
◼ VCE(sat)(typ.) =1.45V@VGE=15V, IC=75A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Resonant Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters

Features
◼ 650V, 75A
◼ VCE(sat)(typ.) =1.80V@VGE=15V, IC=75A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters

Features
◼ 650V, 50A
◼ VCE(sat)(typ.) =1.8V@VGE=15V, IC=50A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters

Features
◼ 1200V, 50A
◼ VCE(sat)(typ.) =1.85V@VGE=15V, IC=50A
◼ Low Switching Losses
◼ VCE(sat) with Positive Temperature Coefficient
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Frequency Converters
◼ Uninterrupted Power Supply
◼ Air Conditioning
◼ Motor Drives

Features
◼ 650V, 50A
◼ VCE(sat)(typ.) =1.26V@VGE=15V, IC=50A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters

Features
◼ 1200V, 25A
◼ VCE(sat)(typ.)=1.80V@VGE=15V, IC=25A
◼ Low Switching Losses
◼ VCE(sat) with Positive Temperature Coefficient
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Frequency Converters
◼ Uninterrupted Power Supply
◼ Air Conditioning
◼ Motor Drives

Features
◼ 650V, 15A
◼ VCE(sat)(typ.) =1.80V@VGE=15V, IC=15A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant
Applications
◼ Solar Converters
◼ Uninterrupted Power Supply
◼ Welding Converters
◼ Mid to High Range Switching Frequency Converters

Description
XCP4509A series are innovated design and silicon
process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications.
The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications.

XCP6821 是一款高集成度，符合
WPC Qi 标准的无线充电发射控制芯片。芯片内部集成
H桥驱动模块、ASK通讯解调模块、适配器快充
Sink协议等必要的无线充电资源。
XCP6821 支持协议、异物检测灵敏度、指示灯等功能定制。
XCP6821 采用
SOP16 封装，PIN 脚功能排布针对无线充电应用进行了优化，非常便于方案PCB 绘制。

600V/6A 3-Phase Full-Bridge Driver (Intelligent Power Module)
FEATURE HIGHLIGHTS
 Built-in low-loss 600V/6A IGBTs
 Built-in high-voltage integrated circuit of gate driver  Built-in under voltage protections
 Built-in bootstrap diode with current limiting resistor  Signal high level valid, compatible with 3.3V and 5V
MCU
 Built-in NTC Thermistor for Temperature Monitoring
 Resistant to high voltage 1500V

The XC2101 is a high voltage high speed power MOSFET
and IGBT driver IC with independent high and low side
referenced output channels. Logic inputs are compatible
with standard CMOS or LSTTL output, down to 3.3V logic.
The output drivers feature a high pulse current buffer stage
designed for minimum driver cross-conduction. The floating
channel can be used to drive an N-channel power MOSFET
or IGBT in the high side configuration which operates up to
500 volts.

XC32MT040 芯片的内核基于 ARMv8-M 架构，支持 Cortex-M33 和 Cortex-M4F 指令集。内核支持一整套 DSP 指令用于数字信号处理，支持单精度 FPU 处理浮点数据，同时还支持 Memory rotection Unit （MPU）用于提升应用的安全性。内核性能高于 ARMv7-M 架构的 M4F 20%。
XC32MT040 系列芯片最高工作频率可达 120MHz， 内嵌数学硬件加速，内置最大 320KB 的 eFlash 和最大 64KB SRAM。芯片集成了 2 个 12 位多通道最高速度达 3Msps 高精度 ADC、一个 12 位 2 通道的 DAC、多达 3 路运放、4 路比较器，集成了 2 个高级定时器，6 个通用 16 位定时器，2 个基本 16 位定时器，1 个 16 位的低功耗定时器，1 个系统看门狗，1 个独立看门狗，一个实时时钟（RTC），内置多路 UART、LPUART、QSPI、I2C、I2S、CAN、全速 USB 等丰富的通讯外设，内建 AES、CRC、TRNG 等算法模块。

XC32MT020 系列是一款支持多种低功耗模式的通用 MCU。集成 12 位 1.6 Msps 高精度 ADC 以及比较器、运放、触控按键控制器、段式 LCD 控制器，内置高性能定时器、多路 UART、LPUART、SPI、I2C等丰富的通讯外设，内建 AES、TRNG 等信息安全模块，支持多种低功耗模式，具有高整合度、高抗干扰、高可靠性的特点。本产品采用 ARM Cortex-M0 系列内核，最高工作频率 64MHz。

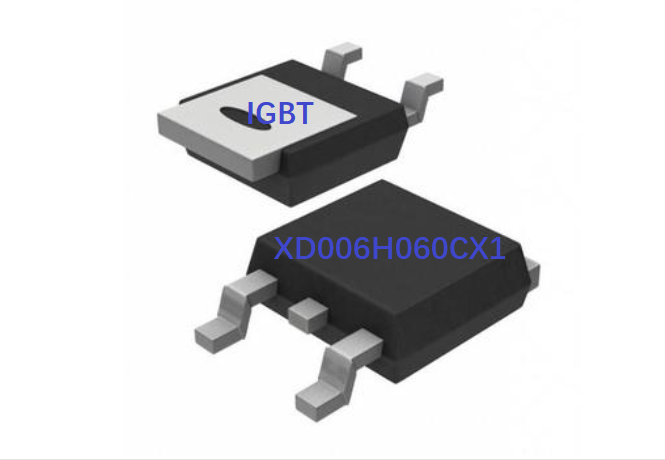

Trench Field-Stop Technology IGBT
Features
◼ 600V, 6A
◼ VCE(sat)(typ.) =1.75V@VGE=15V, IC=6A
◼ Maximum Junction Temperature 175℃
◼ Pb-free Lead Plating; RoHS Compliant

100V 120A 4.0mohm, N Channel Enhanced SGT MOSFET
Features
 100% UIS and Rg tested
 Ultra low RDS(on) and Rth,JC
 Qualified according to J-STD020 and JESD22
 Halogen-free according to IEC61249-2-21
 Pb-free lead plating; RoHS compliant

XCB(T)065N15H
150V 140A 6.5mohm, N Channel Enhanced SGT MOSFET
Features
 100% UIS and Rg tested
 Ultra low RDS(on) and Rth,JC
 Qualified according to J-STD020 and JESD22
 Halogen-free according to IEC61249-2-21
 Pb-free lead plating; RoHS compliant

主要功能
 600V/50A 三相全桥，mini 封装
 Trench&FS IGBT
 下侧 IGBT 发射极输出
 兼容 3.3V&5V 输入信号，高电平有效
 内置自举二极管
 电源欠压保护
 短路（过流）保护
 短路（过流）或电源欠压故障输出
 NTC 温度检测输出
应用领域
 变频空调、通用变频器、伺服驱动器等

 600V/15A 三相全桥，supermini 封装
 Trench&FS IGBT
 下侧 IGBT 发射极输出
 兼容 3.3V&5V 输入信号，高电平有效
 内置自举二极管
 电源欠压保护
 短路（过流）保护
 短路（过流）或电源欠压故障输出
 NTC 检测输出
应用领域
 变频空调、变频洗衣机、变频冰箱、工业缝纫机、
通用变频器、伺服驱动器等
